Import An Excel File Into Access

Import An Excel File Into Access

Sometimes integrating Talend with Excel data files can be particularly challenging, in this post we are going to walk you through the basic steps required to get started on build a job to load a MS Excel file into an Access database.

You can create the example excel file used in this tutorial using the below screenshot:

Lets assume we are trying to load data from an excel file that contains the following fields:

Salesman Name Salesman Id Account Id Number of Units

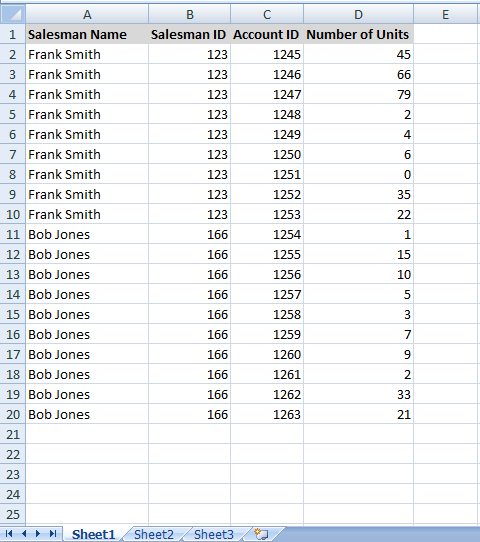

The file would look something like this:

image 1

We want to load this file into a MS Access database table with a schema as follows:

image 2

Our Talend job will need to load only the fields as required in the database table, here are the steps we will take to build our Talend Open Studio solution:

Step 1: Open Talend

Open Talend and create or open an existing project

Step 2: Create a new job

Right click on Job Designs in the Repository window and select “Create job” Name the job “excel_load_example”

image 3

Step 3: Create a Ms Excel file repository element

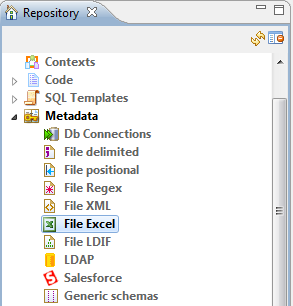

Now we need to create a repository item for our excel file. To do this click the arrow next to “Metadata” in the Repository window and right click on “File Excel” and select “Create file Excel”.

image 4

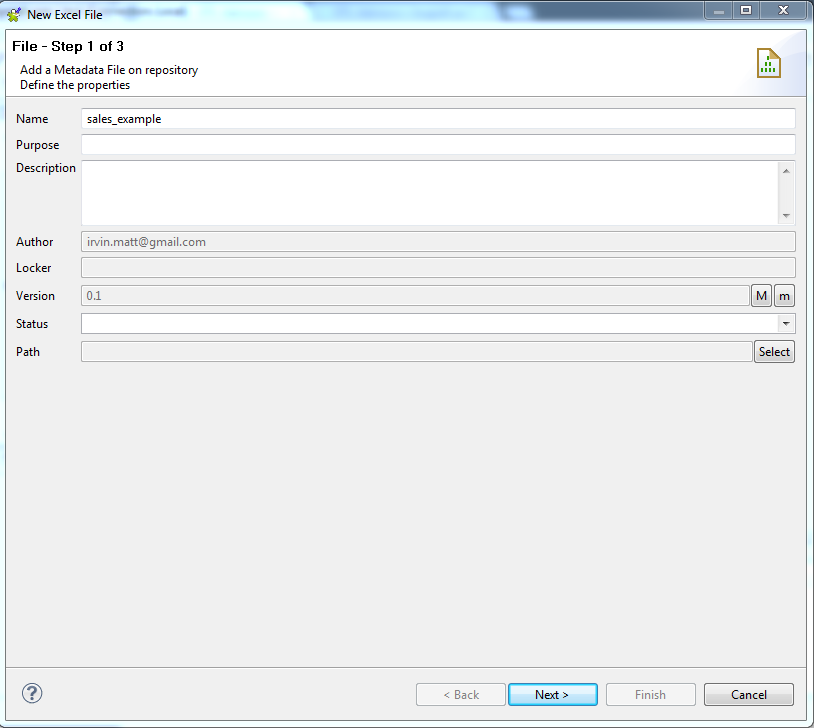

Enter a name for your example file schema and click next:

image 5

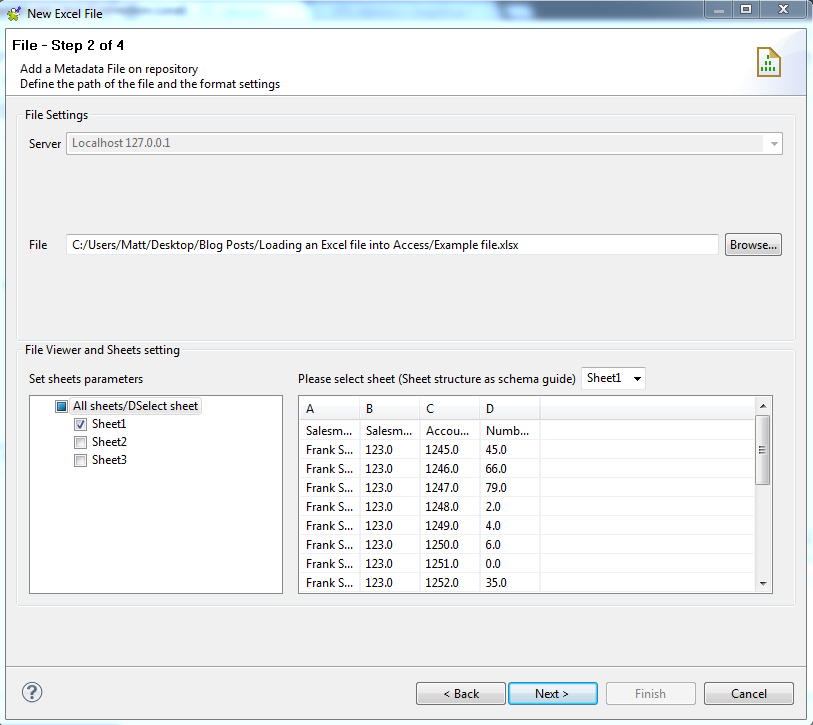

Select your example file that we saw earlier (or use your own) by clicking the “Browse” button.

Then select which work sheets in the Excel file contain the data we want to use for our schema.

Click Next

image 6

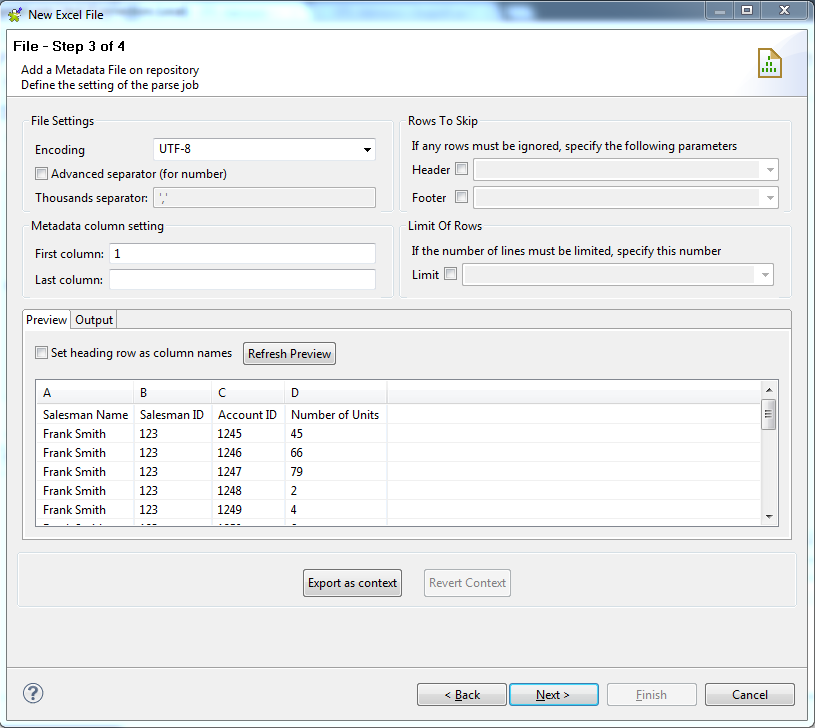

On the next screen select the checkbox for “Set heading row as column names”, then click “Refresh Preview”. Click Next.

image 7

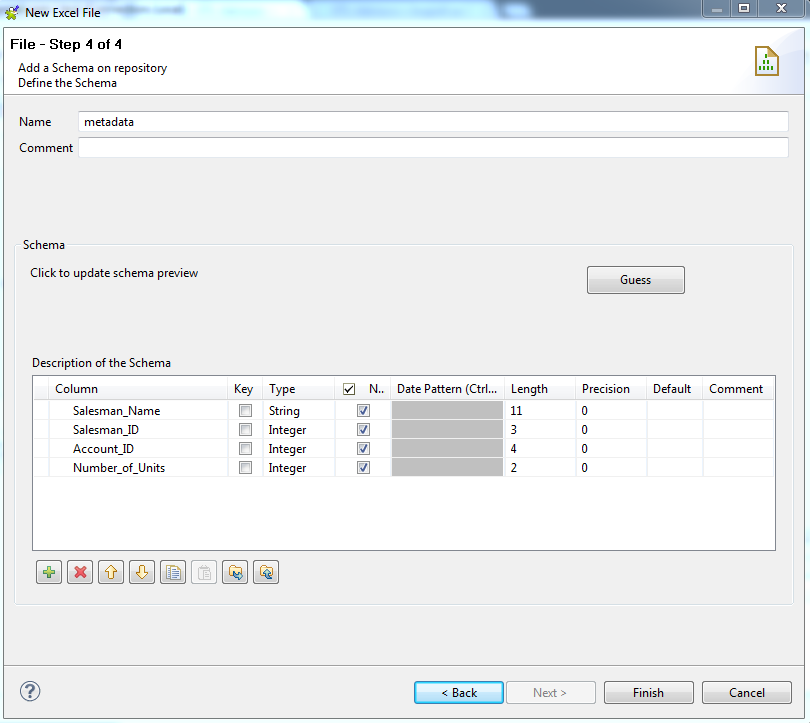

Talend has now generated an estimated schema, review this schema and make any changes as you would like, then click Finish.

image 8

Step 4: Create an Access Database Table Repository Element

In this next step we are going to create a repository element for the Access database table schema so that we can use this in our job design.

Right click on “DB Connections” under “Metadata” in the Repository window and select “Create connection”

image 9

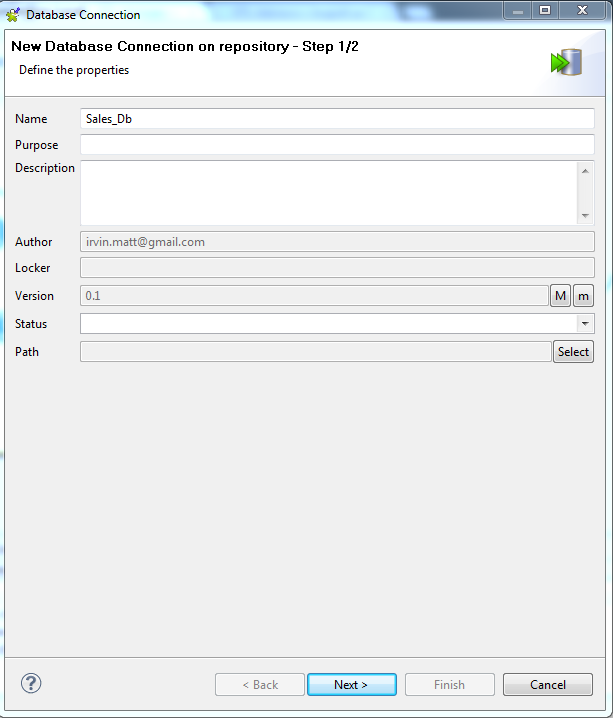

Name your database then click next:

image 10

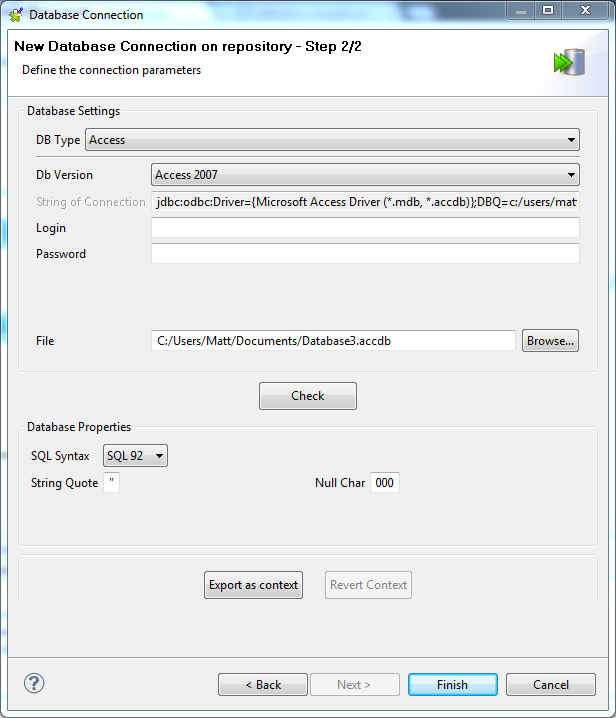

Select DB Type as “Access” and DB Version as “Access 2007” or “Access 2003” if you are using that version.

Click on the “Browse” button and navigate to your Access database file.

Once selected then click on the “Check” button to make sure that Talend is able to connect to your DB.

If the connection works then click “Finish”

image 11

Now the DB Connection should appear under “Repository” -> “Metadata” -> “Db Connections” in the panel on the left

Right click on the DB name in this panel and and select “Retrieve schema”

image 12

On the pop up screen, click “Next”

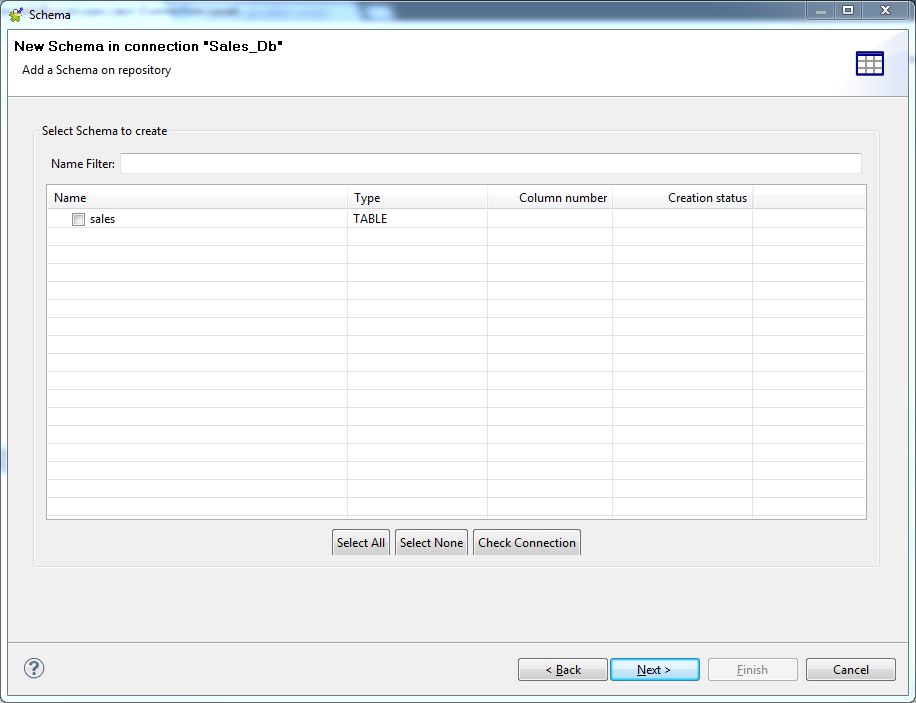

On the following screen, select the “sales” table from our database and click “Next”

image 13

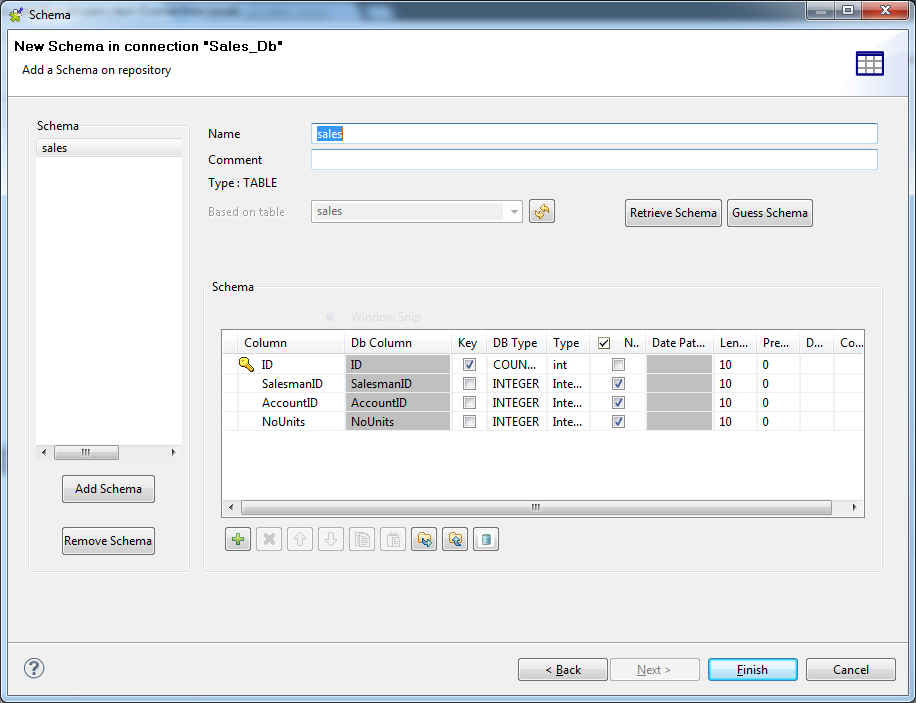

The final window will display the schema of your database table, which can now be used in the repository for future job design. Review the schema and make any changes if needed, then click “Finish”.

image 14

Step 5: Design your job

In this step we are are going to design our job to connect our MS Excel file to our MS Access DB.

Open the job we created in Step 2 by double clicking the name of the job under Job Designs in the Repository window.

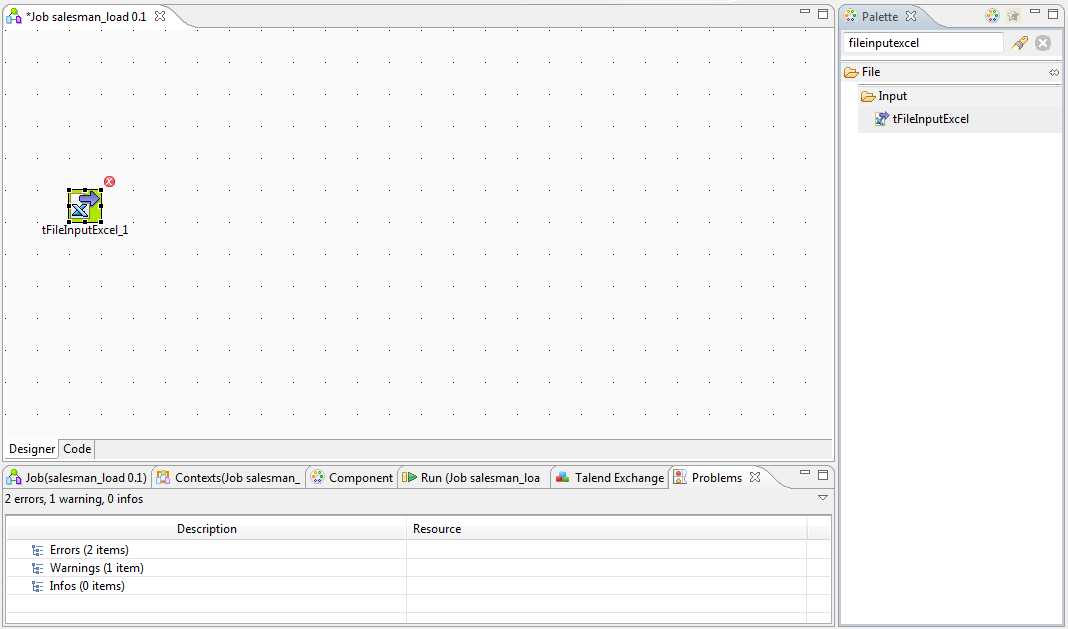

In the palette window on the right hand side type “fileinputexcel” into the search box, then drag and drop the component “tFileInputExcel” into the job window in the center of the screen.

image 15

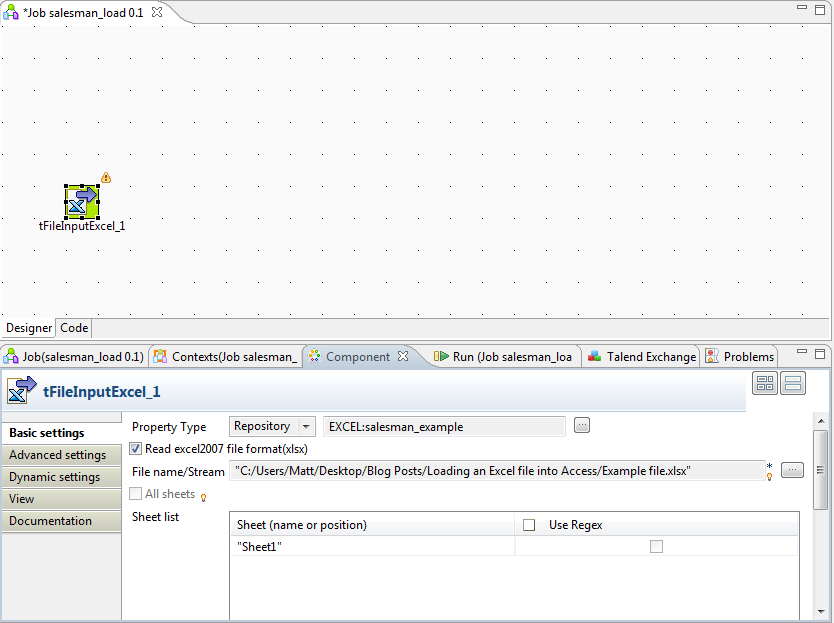

Select the tFileInputExcel Component in the job window and then select the “Component” tab near the bottom middle of the screen.

Click the drop down box next to “Property type” and select “Repository”

Then click the button with three dots that appears and select the Excel file from the repository that we created in Step 3.

If the file is in Excel 2007 format then click the check box “Read excel 2007 file format (xlsx)”

image 16

Select a tMap component from the palette on the right hand side of the screen and drag it into the job design window

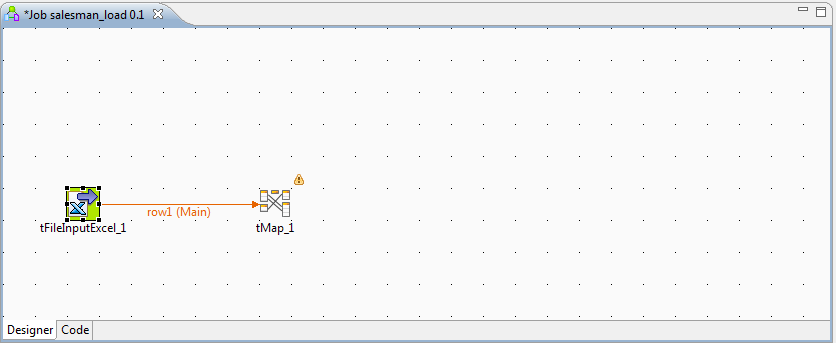

Right click on the tFileInputExcel component, select Row->Main and connect a row to the tMap component.

image 17

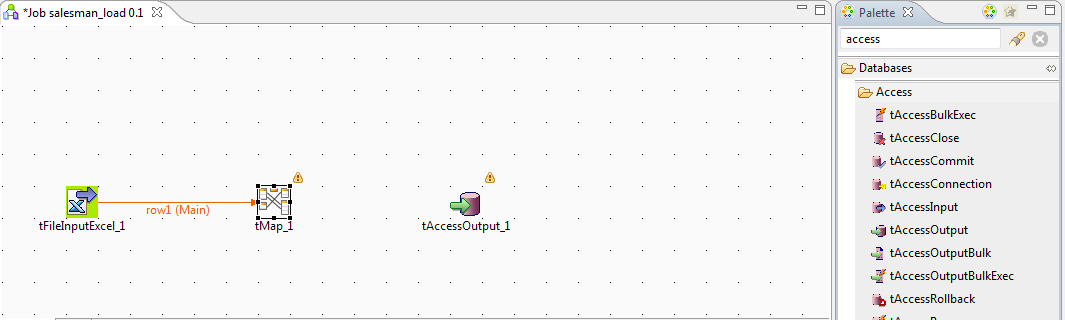

Select a tAccessOutput component from the Palette and drag it over to the job design window.

image 18

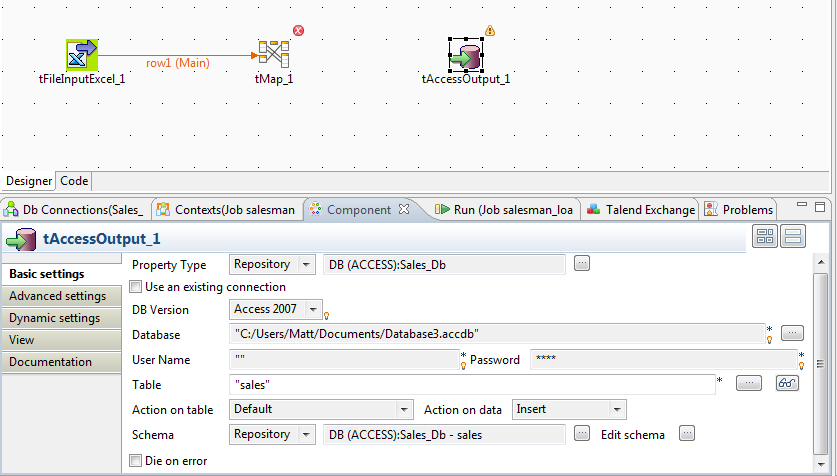

Click on the tAccessOutput component to select it, then navigate to the Component tab in the lower middle of the screen

Under Property Type, select Repository and then select the access database from the repository that we created in Step 4

Under Schema, select Repository and then select the “sales” table from our database in the repository

image 19

Next right click the tMap component, Select “Row” then “New Output”.

Connect this new output to the tAccessOutput component

Name the output row- “output1”

A popup window will appear asking you: “Do you want to get the schema of the target component” – click “Yes”.

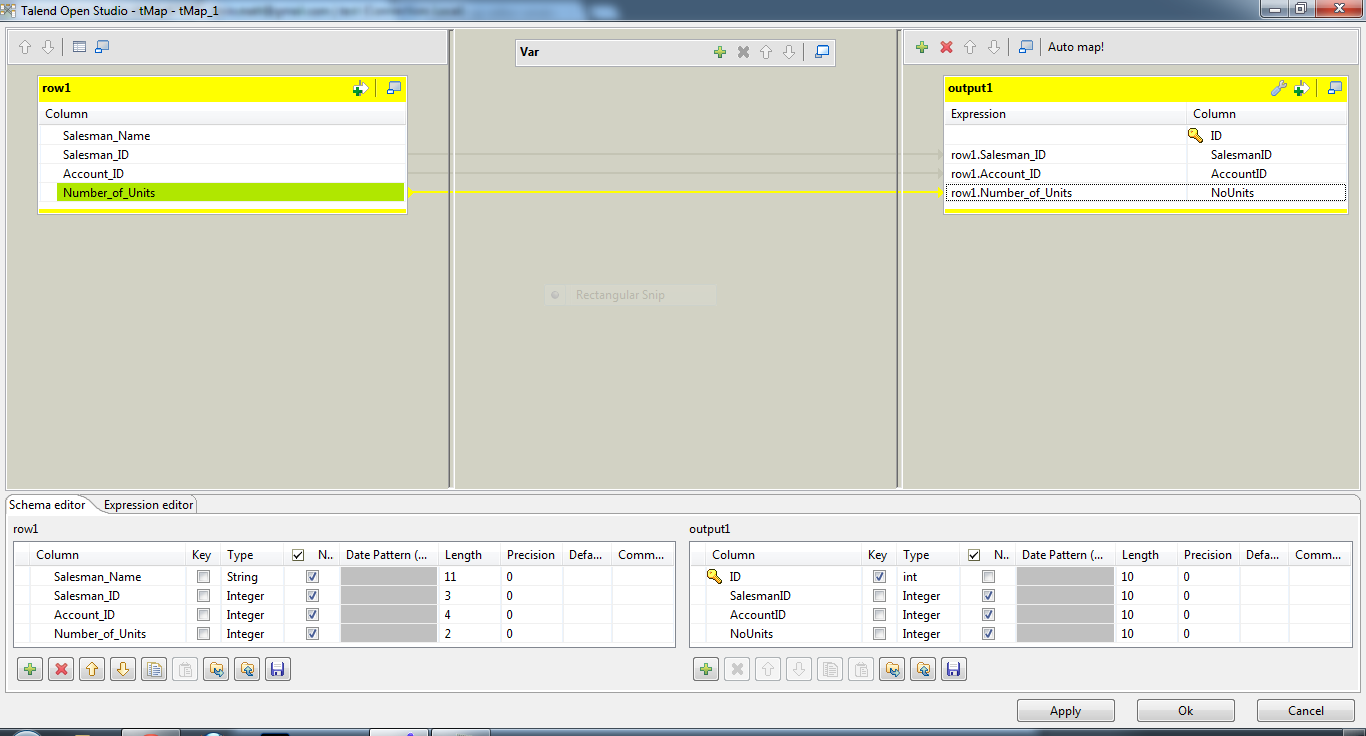

Now your tMap is connected to the tAccessOutput component, double click the tMap component to open up the tMap editor.

Click and drag the data fields from the “row1” panel to the left of the screen to the corresponding “output1” data fields. This tMap editor enables you to map to fields from the Excel input to the correct output fields in Access.

image 20

Click “Apply” then “OK” to save the changes and return to the Job Design window

Now your job design is complete and we just need to run the job to load the file into Access

Step 6: Run your Job

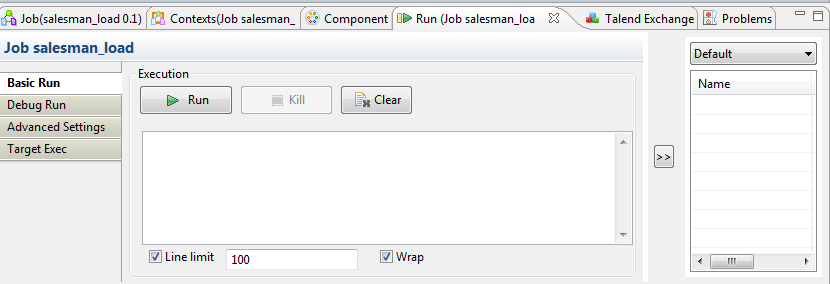

In the group of tabs in the lower middle of the screen, select the “Run” tab

image 21

Under Execution, click the “Run” button

Your job will load and then run and you will see how many rows were processed in the job design window.

image 22

Congratulations! You have now loaded your data into your Access DB table.
